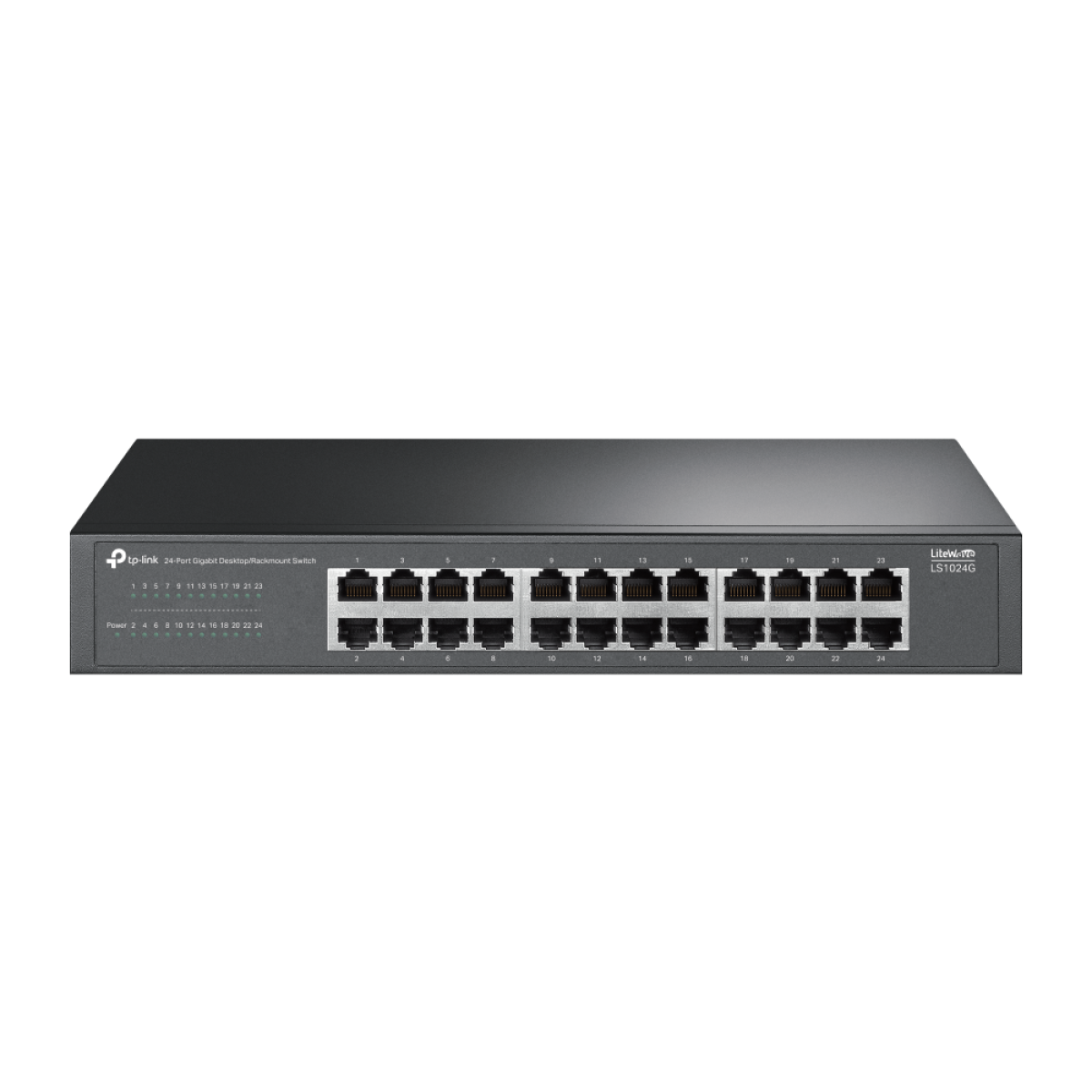

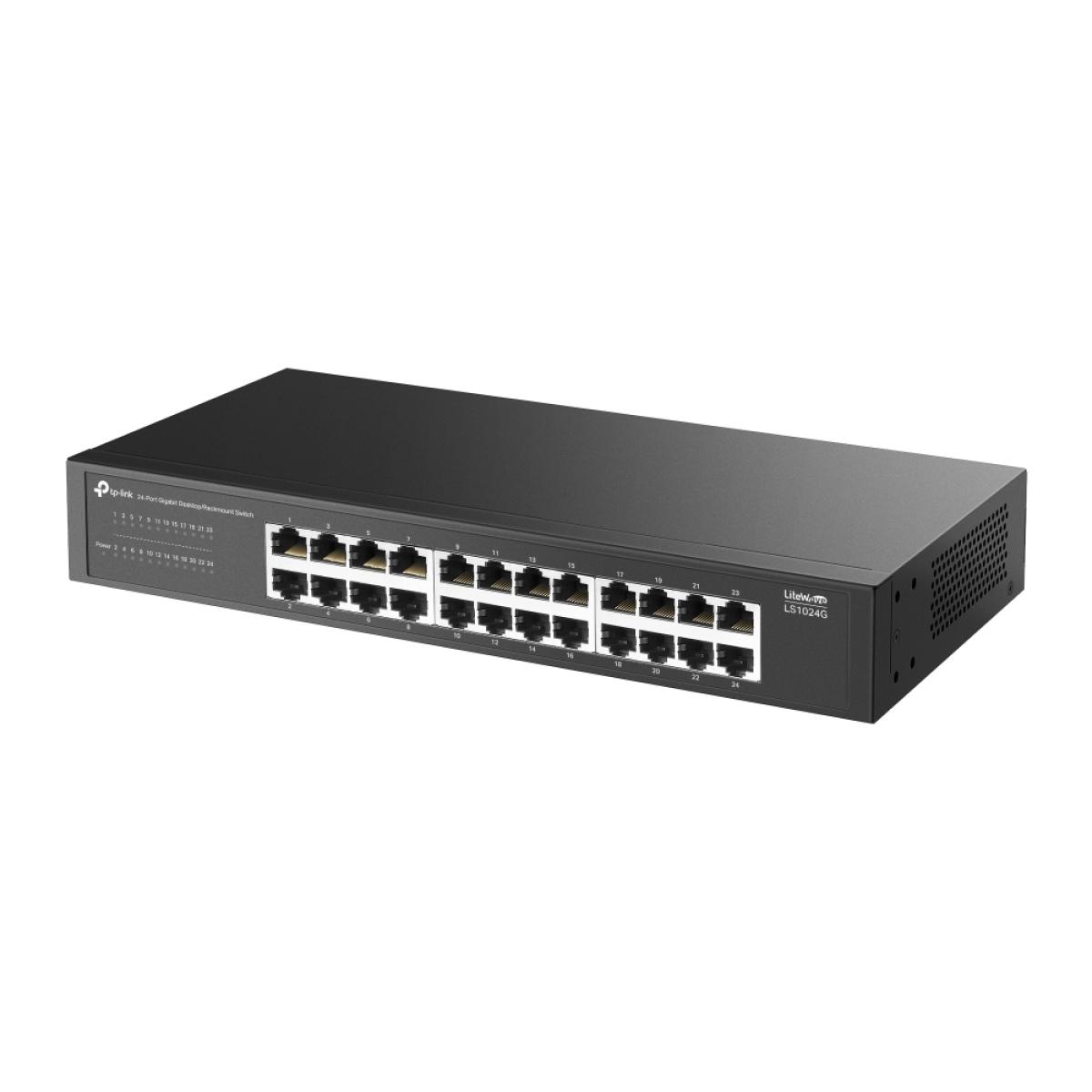

TP-Link LS1024G - 24-Port Gigabit Desktop/Rackmount Switch

The TP-Link LS1024G is a 24-port Gigabit Desktop/Rackmount Switch designed with 24× 10/100/1000Mbps RJ45 ports. It supports Auto Negotiation, Auto MDI/MDIX, MAC address self-learning, and plug-and-play operation for straightforward network connectivity.

The TP-Link LS1024G combines Gigabit connectivity, QoS, energy-efficient technology, and a durable metal casing in a design suitable for desktop or rackmount installation.

Why Buy This

The TP-Link LS1024G provides 24 Gigabit Ethernet ports with a 48Gbps switching capacity, making it a practical choice when multiple wired network connections are required.

Key advantages include:

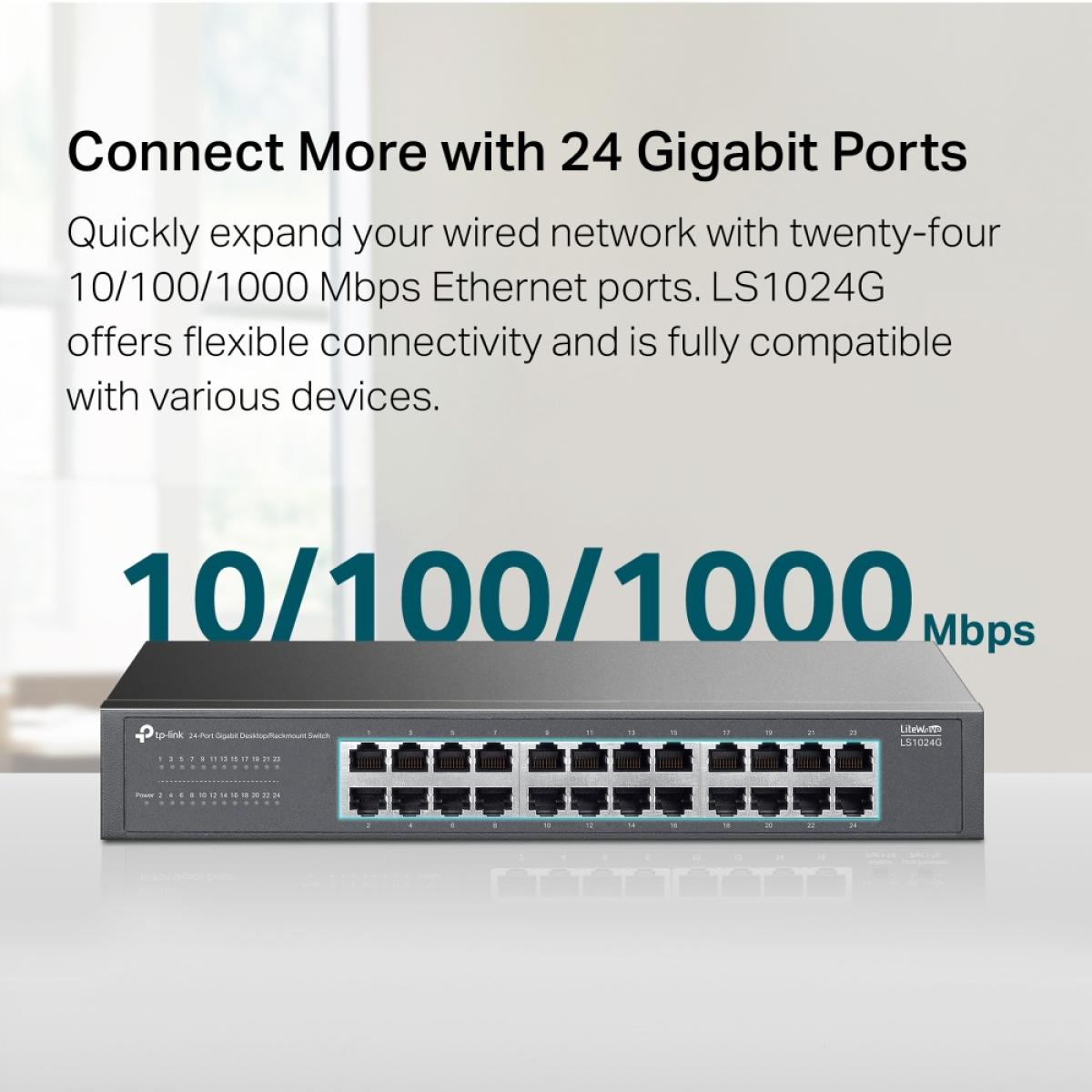

• 24× 10/100/1000Mbps RJ45 ports
• 48Gbps switching capacity
• 35.712Mpps packet forwarding rate

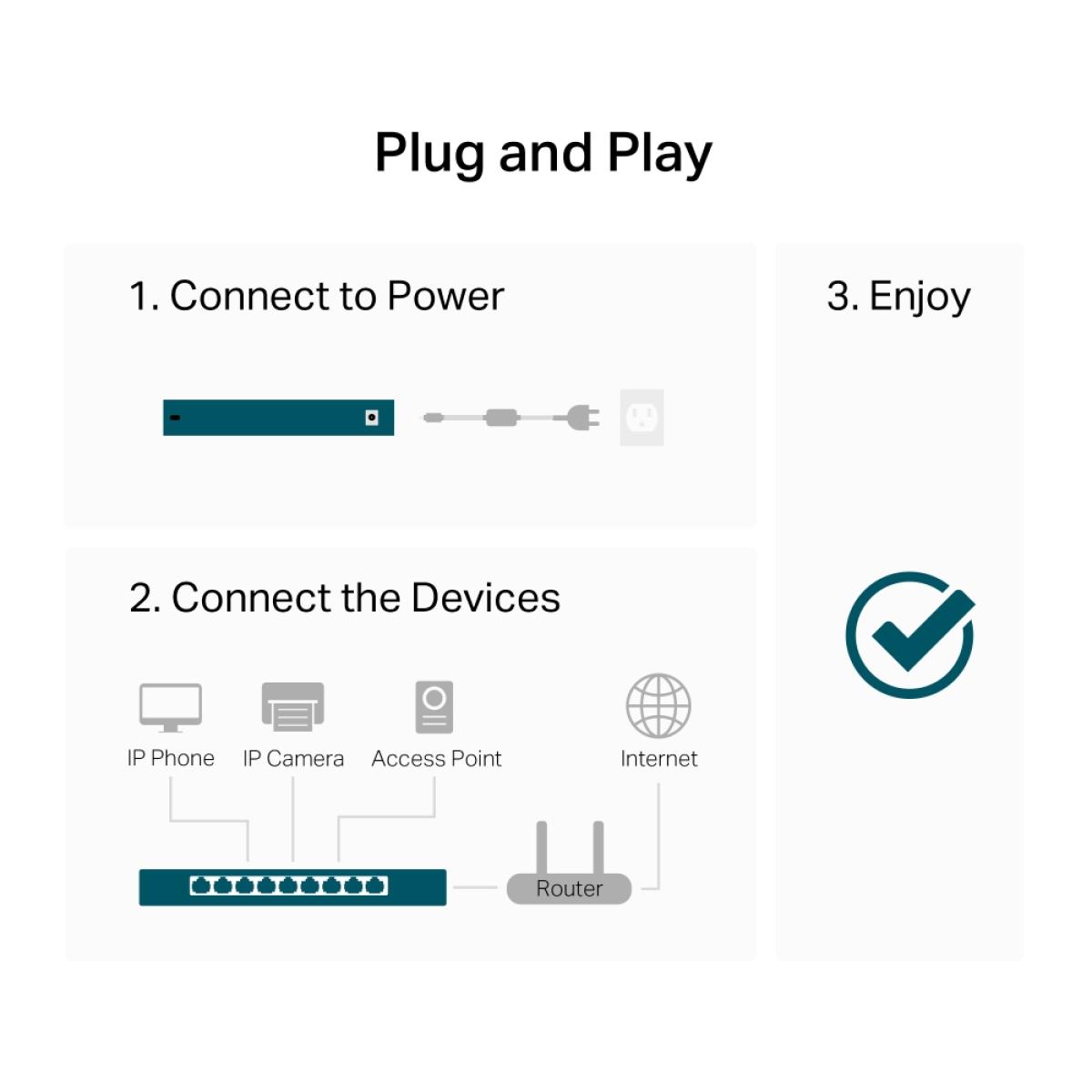

• Plug-and-play design
• QoS for latency-sensitive voice and video traffic
• Energy-efficient technology
• Fanless operation
• Durable metal casing
• Desktop or rackmount installation

Design

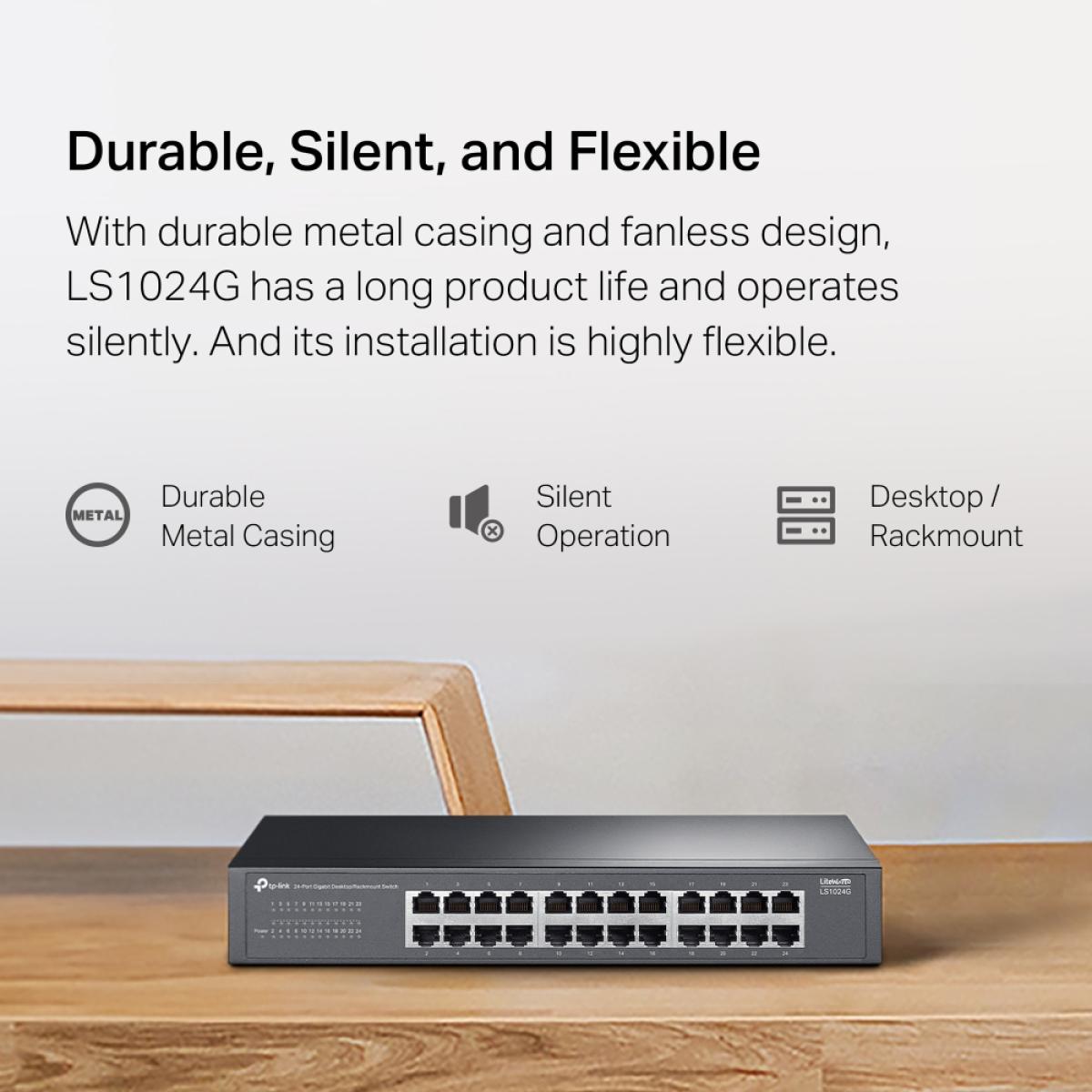

The TP-Link LS1024G features a durable metal casing designed to provide improved heat dissipation and support a longer product life.

Its fanless design reduces power consumption and provides silent operation, making it suitable for noise-sensitive homes or businesses.

With dimensions of 294 × 140 × 44 mm, the LS1024G supports both desktop and rackmount installation. Rackmount kits and rubber feet are included in the package.

Performance

The TP-Link LS1024G offers a 48Gbps switching capacity and a 35.712Mpps packet forwarding rate.

It features an 8K MAC address table, supports 10KB Jumbo Frames, and uses Store-and-Forward transmission.

QoS and Traffic Management

The TP-Link LS1024G supports QoS, helping ensure smooth traffic for latency-sensitive applications such as voice or video.

It also supports IEEE 802.3x and IEEE 802.3p standards for network traffic handling.

Connectivity

The TP-Link LS1024G provides:

• 24× 10/100/1000Mbps RJ45 ports
• Auto Negotiation
• Auto MDI/MDIX
• MAC address self-learning

Supported standards and protocols include IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3p.

Network Media

The TP-Link LS1024G supports the following network media specifications:

• 10BASE-T: UTP Category 3, 4, or 5 cable - maximum 200m
• 100BASE-TX: UTP Category 5 or above - maximum 170m
• 1000BASE-T: UTP Category 5e or above - maximum 160m

Energy Efficiency

The TP-Link LS1024G features innovative energy-efficient technology designed to save power consumption.

Its Green Technology is supported alongside a fanless design, with a maximum power consumption of 12.6W at 110V/60Hz.

Key Features

• 24× 10/100/1000Mbps Gigabit RJ45 ports
• 48Gbps switching capacity
• 35.712Mpps packet forwarding rate
• 8K MAC address table
• 10KB Jumbo Frame support
• QoS
• MAC address self-learning
• Auto Negotiation
• Auto MDI/MDIX
• Plug-and-play design
• Green Technology
• Fanless design
• Durable metal casing
• Desktop or rackmount installation
• Store-and-Forward transmission
• FCC, CE, and RoHS certifications

Technical Specifications

Hardware & Performance Features	Details
Standards and Protocols	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p
Interface	24× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 200m) • 100BASE-TX: UTP category 5 or above cable (maximum 170m) • 1000BASE-T: UTP category 5e or above cable (maximum 160m)
Fan Quantity	Fanless

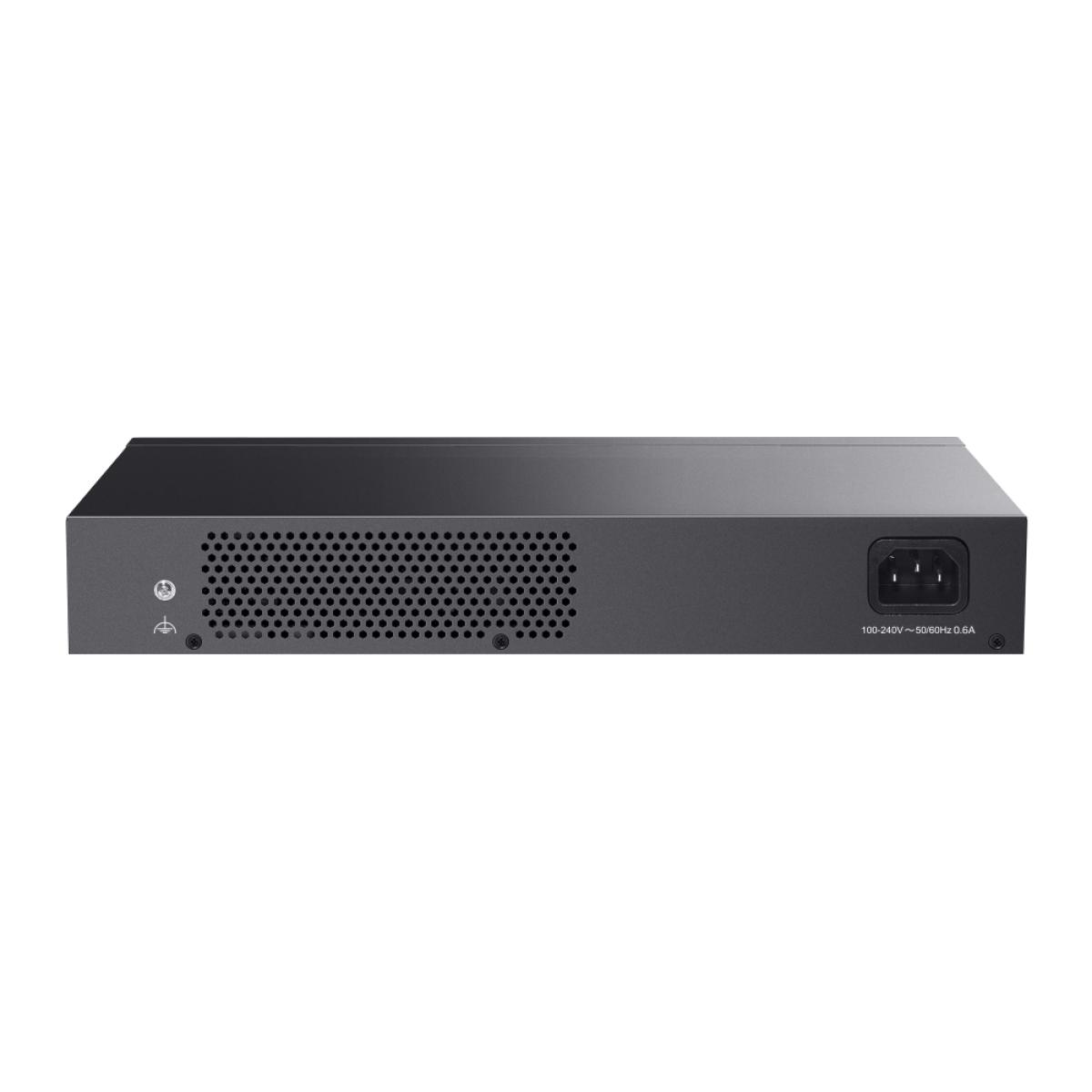

Power Supply	100-240V~50/60Hz, 0.6A
Dimensions ( W x D x H )	11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)
Max. Power Consumption	12.6 W (110V/60Hz)
Max. Heat Dissipation	42.77 BTU/h (110V/60Hz)
Switching Capacity	48 Gbps
Packet Forwarding Rate	35.712 Mpps
MAC Address Table	8K
Jumbo Frame	10KB
Green Technology	Yes
Transmission Method	Store-and-Forward
Certification	FCC, CE, RoHS
Package Content	24-Port Gigabit Desktop/Rackmount Switch, Power Cord, Installation Guide, Rackmount Kits, Rubber Feet

FAQ

How many ports does the TP-Link LS1024G have?
The TP-Link LS1024G has 24× 10/100/1000Mbps RJ45 ports.

Is the TP-Link LS1024G a Gigabit switch?
Yes. The TP-Link LS1024G provides 24 Gigabit Ethernet ports supporting 10/100/1000Mbps.

What is the switching capacity of the TP-Link LS1024G?
The TP-Link LS1024G has a switching capacity of 48Gbps.

Does the TP-Link LS1024G support rackmount installation?
Yes. The LS1024G supports both desktop and rackmount installation and includes rackmount kits.

Does the TP-Link LS1024G have a fan?
No internal fan is specified; the LS1024G uses a fanless design for silent operation.

Does the TP-Link LS1024G support QoS?
Yes. QoS helps ensure smooth traffic for latency-sensitive applications such as voice or video.

What is included with the TP-Link LS1024G?
The package includes the 24-Port Gigabit Desktop/Rackmount Switch, power cord, installation guide, rackmount kits, and rubber feet.

Where can I buy the TP-Link LS1024G in Jordan?
The TP-Link LS1024G is available at special prices in Jordan from Green DARA, with original products.

Warranty

The TP-Link LS1024G comes with a 1-year warranty.

Upgrade your network connectivity with the TP-Link LS1024G - 24-Port Gigabit Desktop/Rackmount Switch. With 24 Gigabit ports, 48Gbps switching capacity, QoS, fanless operation, and desktop or rackmount installation, it provides a practical solution for expanding wired network connectivity.

Get the TP-Link LS1024G at a special price in Jordan from Green DARA, with original products and 1-year warranty.
