The TP-Link LS1016G is a 16-Port Gigabit Desktop/Rackmount Switch with 16× 10/100/1000Mbps RJ45 ports. It supports MAC address self-learning, Auto MDI/MDIX, Auto Negotiation, and a plug-and-play design.
The TP-Link LS1016G combines Gigabit connectivity with QoS, energy-efficient technology, fanless operation, and a durable metal casing. It supports both desktop and rackmount installation.
Why Buy This
The TP-Link LS1016G provides 16 Gigabit Ethernet ports and a 32Gbps switching capacity, making it suitable when multiple Gigabit network connections are required.
Key features include:
- 16× 10/100/1000Mbps ports
- 32Gbps switching capacity
- 23.808 Mpps packet forwarding rate
- MAC address self-learning
- Auto MDI/MDIX and Auto Negotiation

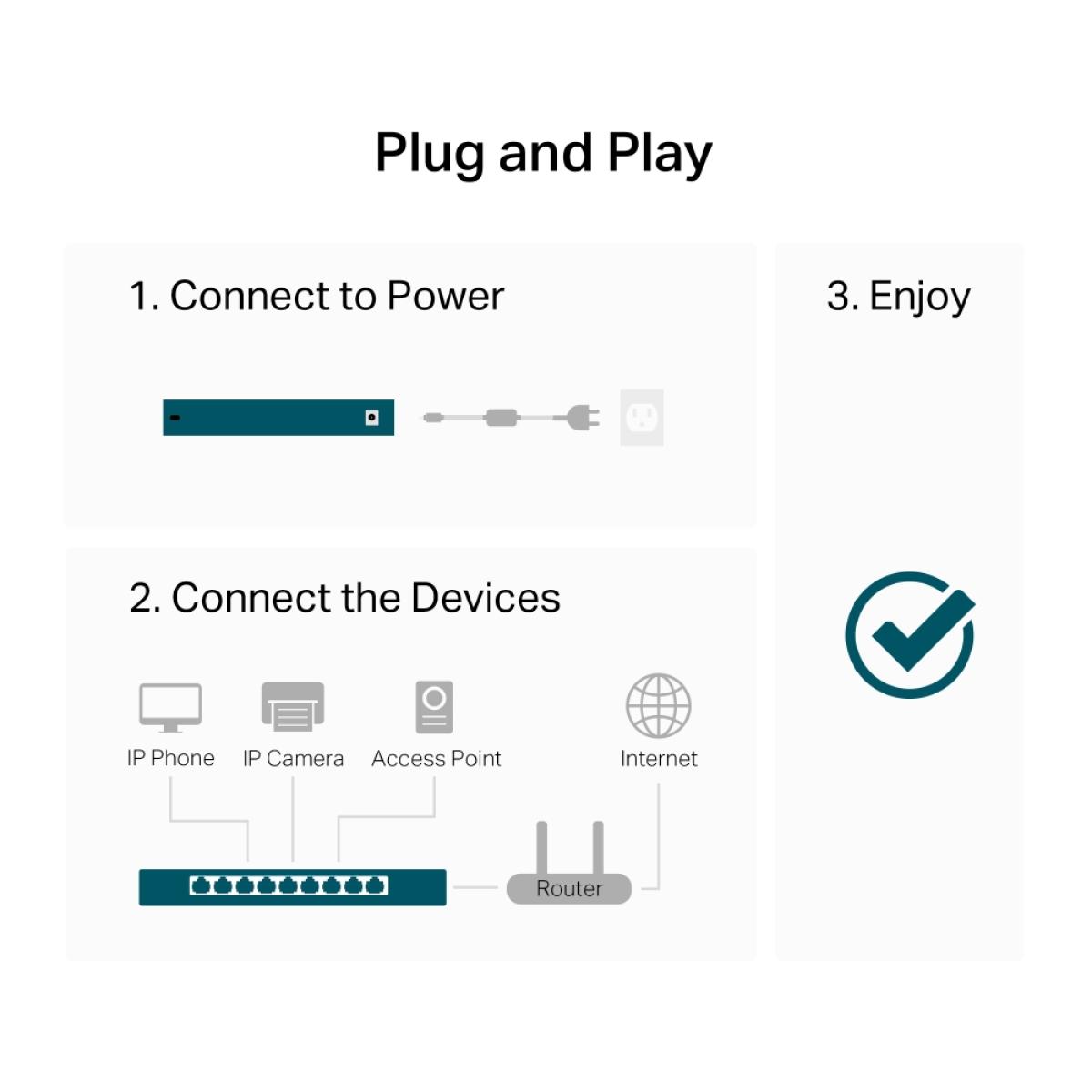

- Plug-and-play operation
- QoS for latency-sensitive applications such as voice or video
- Energy-efficient technology
- Fanless and silent operation
- Durable metal casing
- Desktop or rackmount installation
Design
The TP-Link LS1016G features a durable metal casing designed to provide improved heat dissipation and support a longer product life.
Its fanless design reduces power consumption and ensures silent operation, making the LS1016G suitable for noise-sensitive homes or businesses.
The switch measures 294 × 140 × 44 mm and supports both desktop and rackmount installation. Rackmount kits and rubber feet are included.
Performance
The TP-Link LS1016G delivers a 32Gbps switching capacity and a 23.808 Mpps packet forwarding rate.
It features an 8K MAC address table, supports 15KB Jumbo Frames, and uses Store-and-Forward transmission.
QoS
The TP-Link LS1016G supports QoS, helping ensure smooth traffic for latency-sensitive applications such as voice or video.
Connectivity
The TP-Link LS1016G provides 16× 10/100/1000Mbps RJ45 ports with Auto Negotiation and Auto MDI/MDIX.
Supported standards and protocols include:
- IEEE 802.3
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3p
Network Media
The TP-Link LS1016G supports:
- 10BASE-T: UTP Category 3, 4, or 5 cable - maximum 100m
- 100BASE-TX: UTP Category 5 or above cable - maximum 100m
- 1000BASE-T: UTP Category 5e or above cable - maximum 100m
Energy Efficiency
The TP-Link LS1016G features innovative energy-efficient technology designed to save power consumption.
Its Green Technology is supported by a fanless design, with a maximum power consumption of 7.2W at 110V/60Hz.
Key Features
- 16× 10/100/1000Mbps Gigabit RJ45 ports
- 32Gbps switching capacity
- 23.808 Mpps packet forwarding rate
- 8K MAC address table
- 15KB Jumbo Frame support
- MAC address self-learning
- Auto Negotiation
- Auto MDI/MDIX
- QoS
- Plug-and-play design
- Green Technology
- Fanless design
- Durable metal casing
- Desktop or rackmount installation
- Store-and-Forward transmission
- FCC, CE, and RoHS certifications
Technical Specifications
| Hardware & Performance Features | Details | ||||||||||||||||||
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p | ||||||||||||||||||
| Interface | 16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) | ||||||||||||||||||
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX: UTP category 5 or above cable (maximum 100m) • 1000BASE-T: UTP category 5e or above cable (maximum 100m) | ||||||||||||||||||
| Fan Quantity | Fanless | ||||||||||||||||||
| Power Supply | 100-240V~50/60Hz, 0.3A | ||||||||||||||||||
| Dimensions ( W x D x H ) | 11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm) | ||||||||||||||||||
| Max. Power Consumption |
