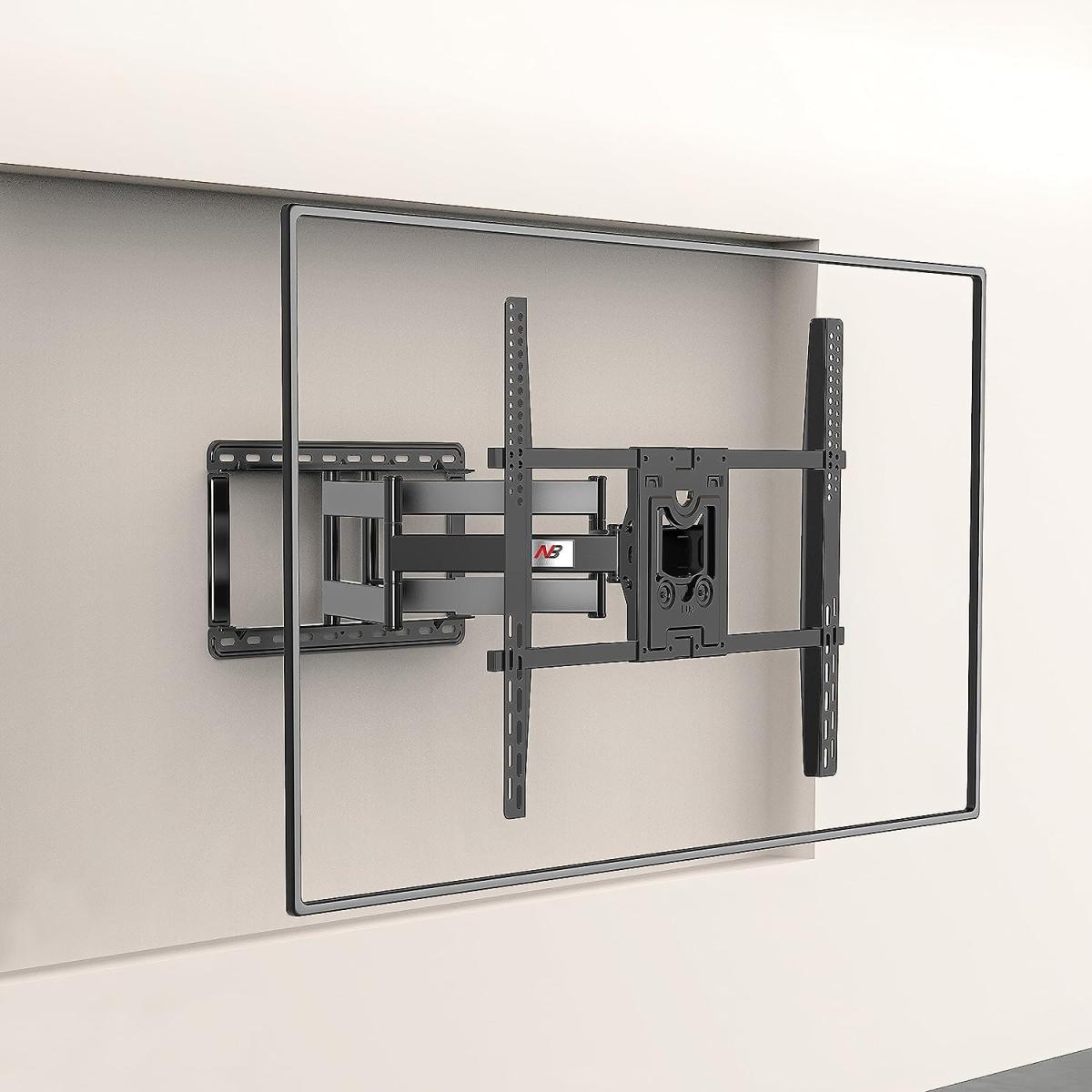

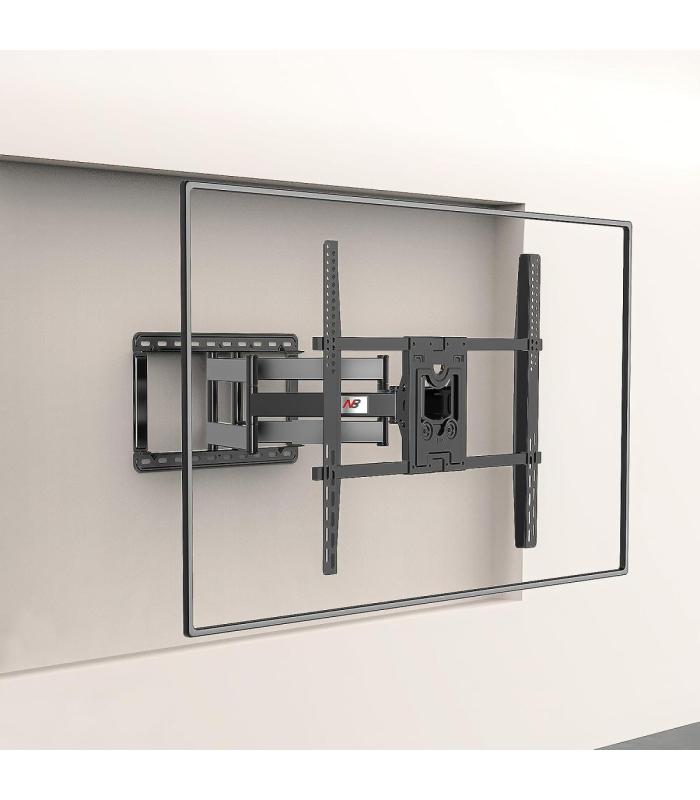

The North Bayou NB SP5 is a premium Heavy Duty Full Motion TV Wall Mount specifically engineered for 75 to 110-inch ultra-large televisions. Designed with reinforced steel construction, it supports TVs weighing up to 90.9kg (200 lbs) while providing smooth extension, swivel, tilt adjustment, and integrated cable management for a clean and professional installation.

Ideal for large OLED TVs, LED TVs, LCD TVs, QLED TVs, Mini-LED displays, Smart TVs, conference rooms, classrooms, hotels, restaurants, digital signage, control rooms, and luxury home theaters, the NB SP5 offers exceptional strength and flexibility.

Compatibility

Supports 75" to 110" TVs

The NB SP5 is designed for today's extra-large televisions ranging from 75 inches up to 110 inches, making it suitable for premium home entertainment systems, corporate meeting rooms, educational institutions, and commercial installations.

It provides significantly higher capacity than standard TV wall mounts designed for 55–75 inch televisions.

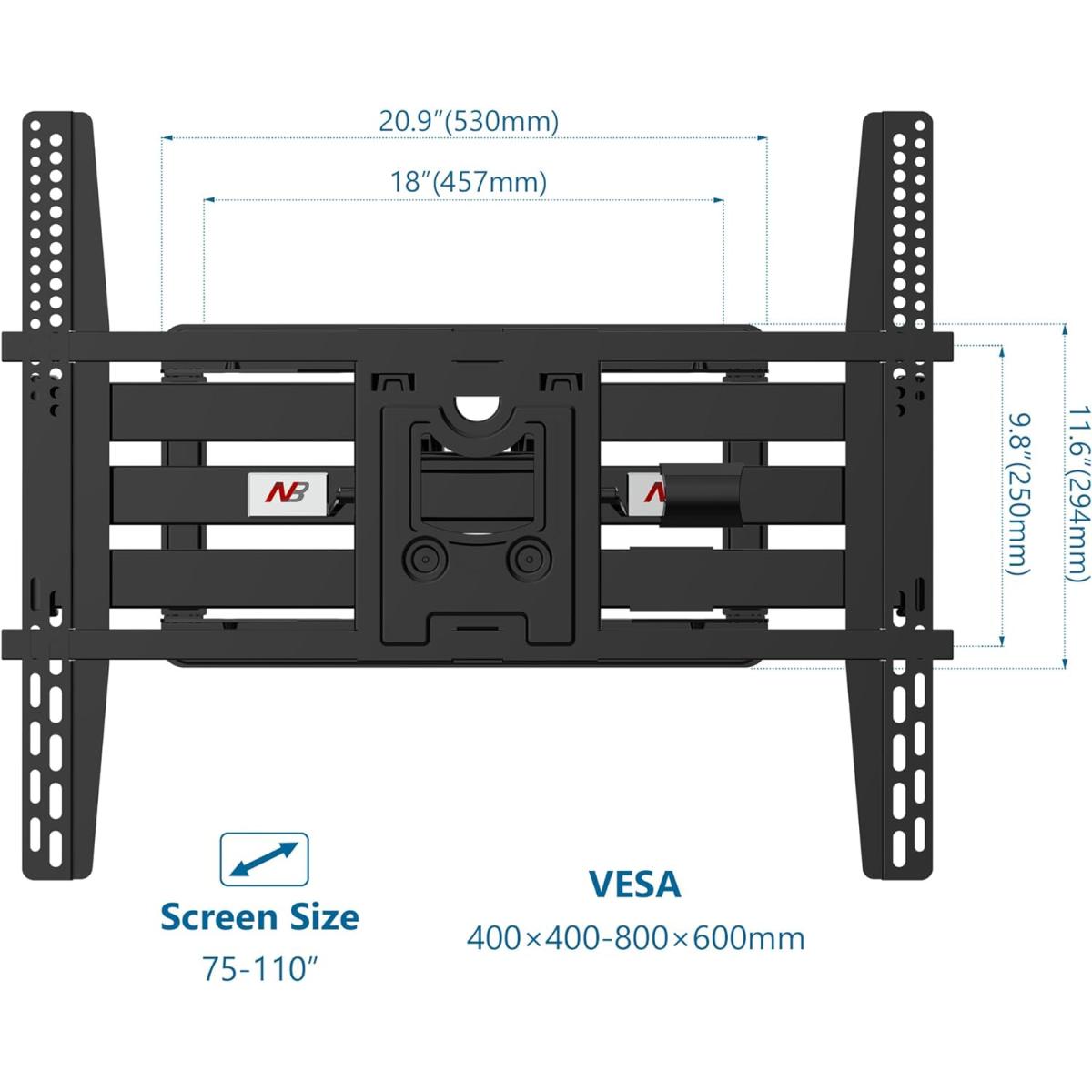

Wide VESA Compatibility (400×400 to 800×600mm)

The mount supports multiple VESA mounting standards including:

• 400 × 400 mm
• 600 × 400 mm
• 800 × 400 mm
• 800 × 600 mm

This wide compatibility allows installation of many large televisions from Samsung, LG, Sony, TCL, Hisense, Xiaomi, Philips, Sharp, and other manufacturers supporting compatible VESA patterns.

Heavy-Duty Construction

Supports up to 90.9kg (200 lbs)

With a maximum load capacity of 90.9kg, the NB SP5 is built for today's largest consumer televisions.

Compared to standard wall mounts supporting 35–50kg, this heavy-duty design offers greater structural strength and long-term reliability for oversized displays.

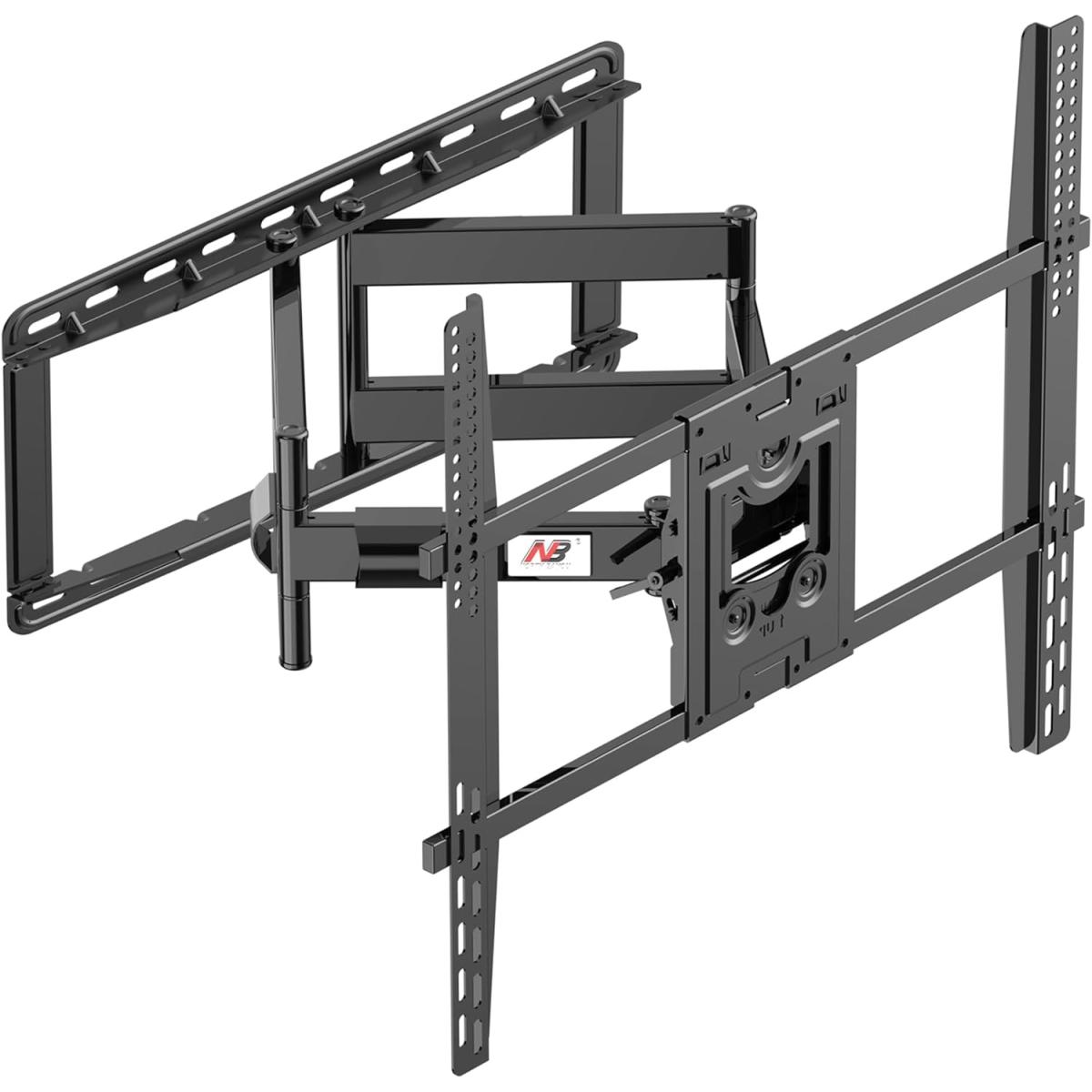

Reinforced Steel Construction

Manufactured using high-strength steel with reinforced support arms, the mount delivers exceptional stability for large-format televisions while minimizing flex during movement.

Its durable construction is ideal for permanent residential and commercial installations.

Viewing Flexibility

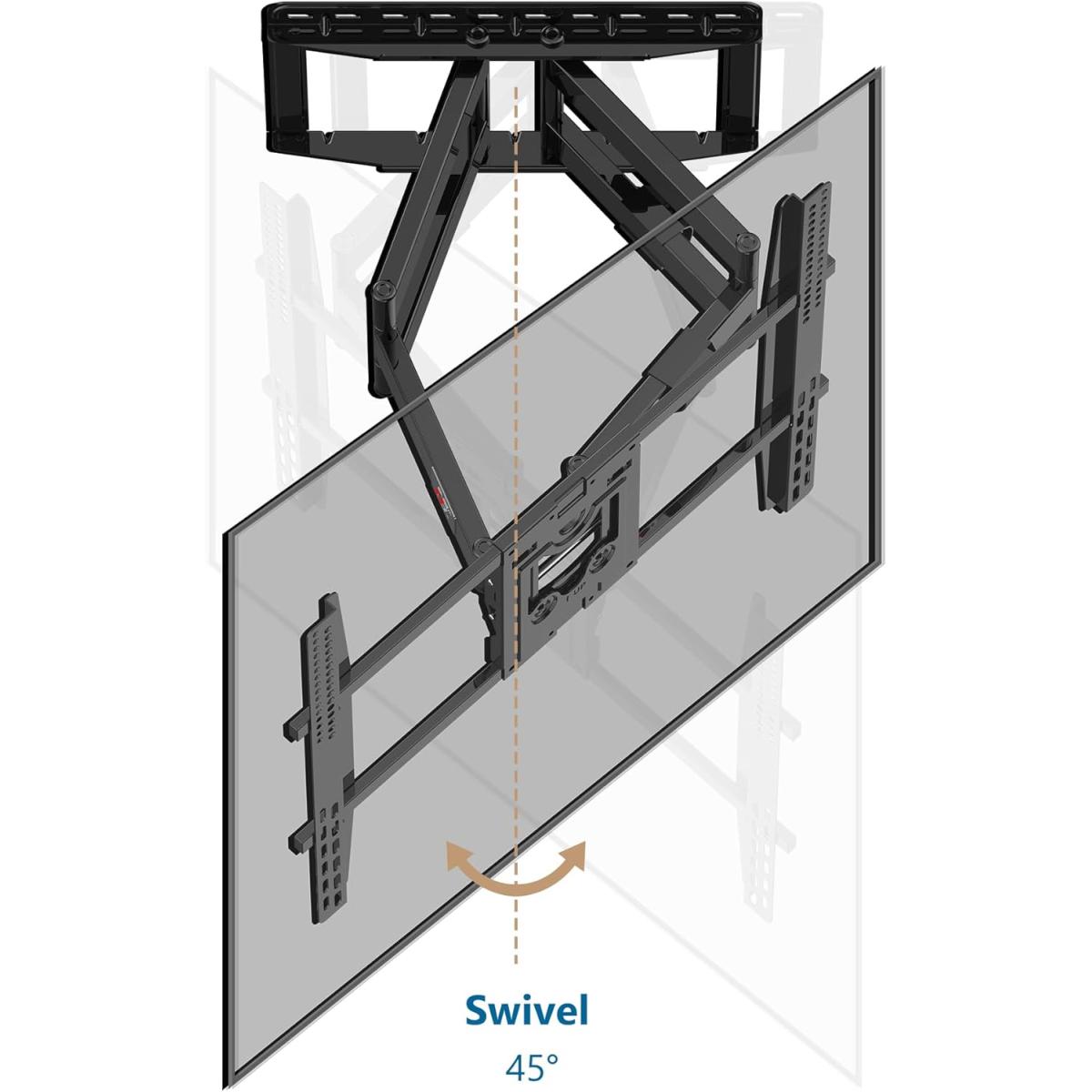

Full Motion Swivel

The adjustable arm provides up to 45° swivel, allowing users to rotate the television toward different seating positions.

This improves viewing comfort in large living rooms, boardrooms, waiting areas, restaurants, hotels, and conference rooms.

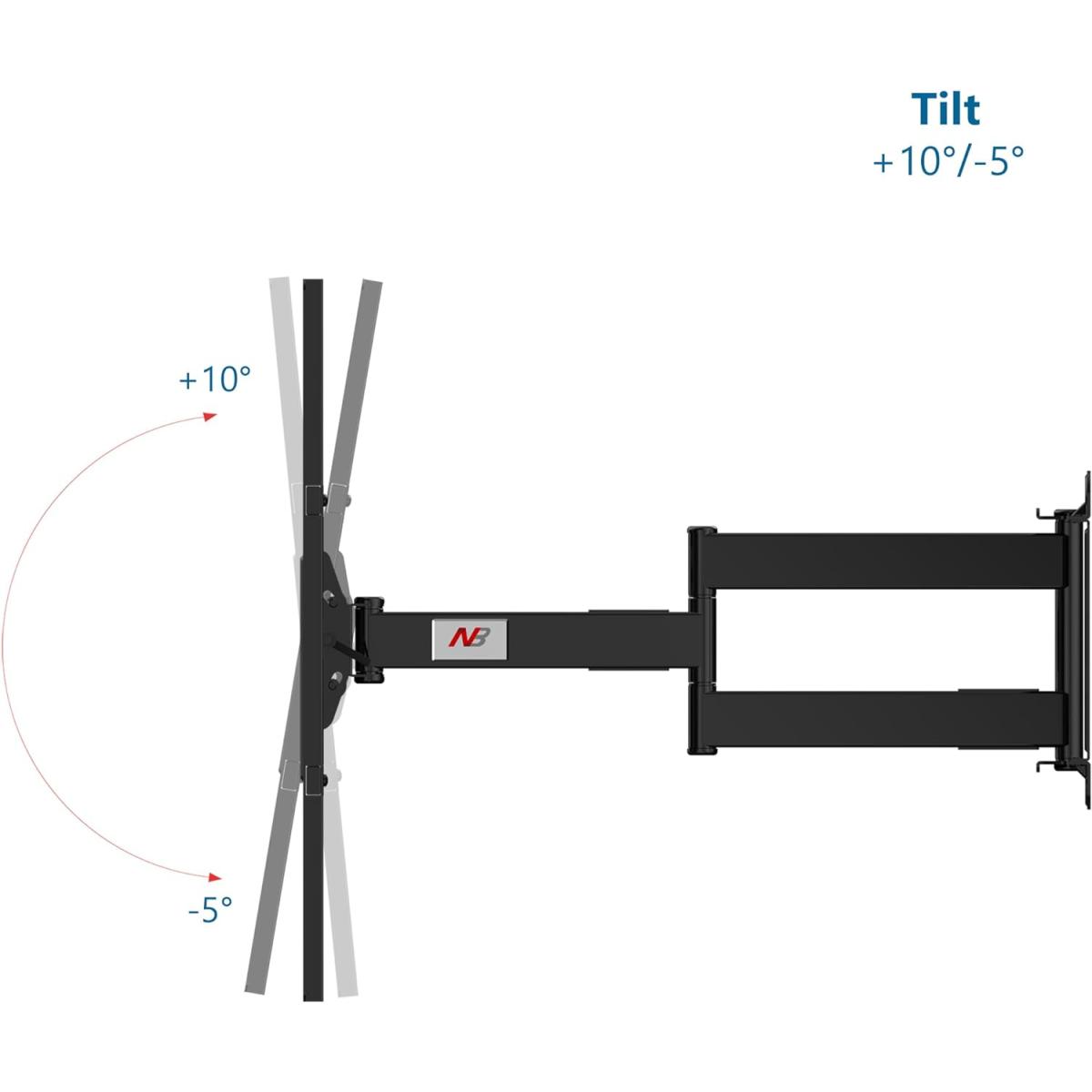

Tilt Adjustment (+10° / -5°)

The adjustable tilt mechanism helps reduce glare from windows and ceiling lights while improving the viewing angle.

Compared with fixed wall mounts, tilt adjustment provides a much more comfortable viewing experience.

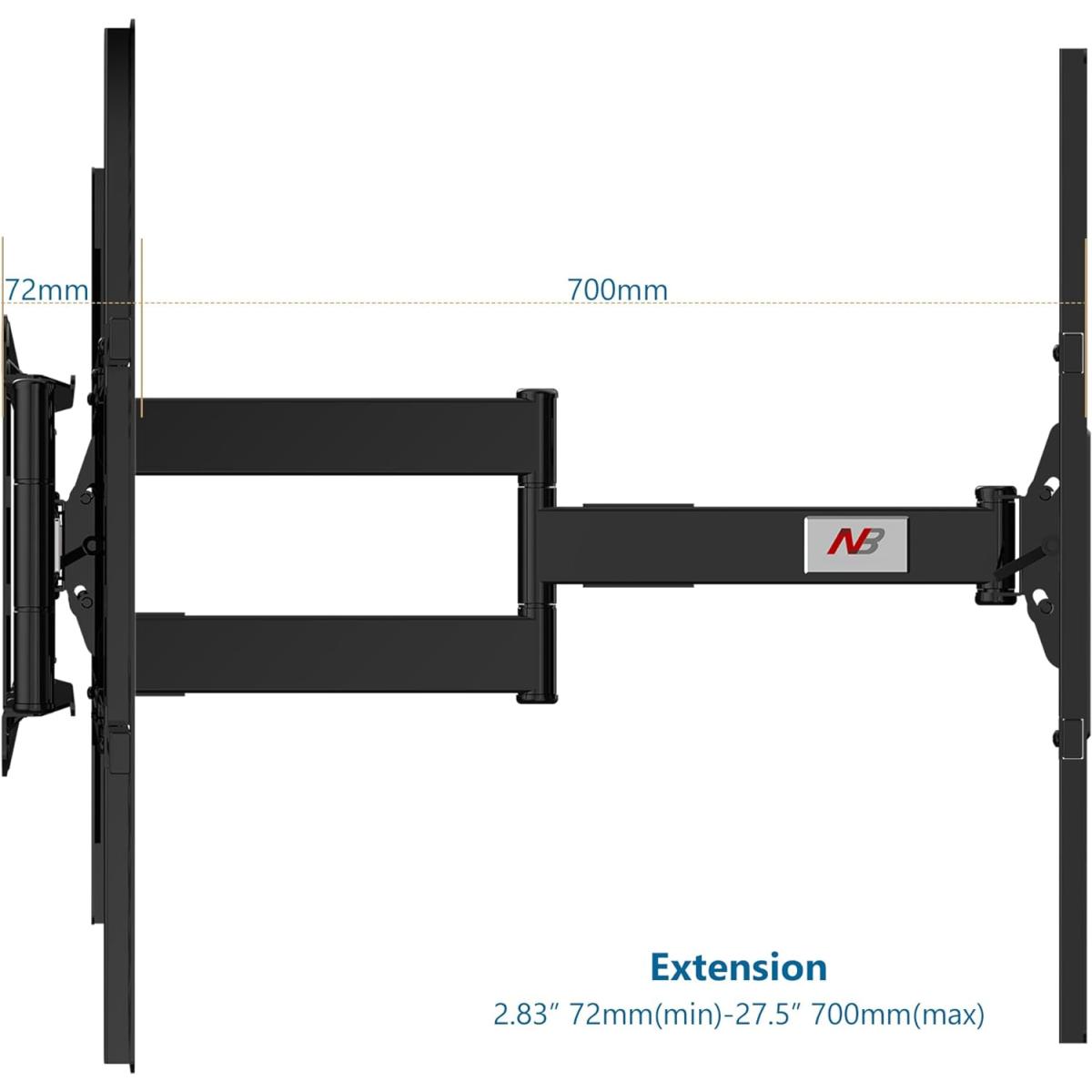

700mm Extension

The arm extends up to 700mm from the wall, providing exceptional flexibility for positioning very large televisions.

When pushed back toward the wall, it saves space while maintaining a clean installation.

Compared to basic wall mounts with limited extension, the NB SP5 offers much greater positioning freedom.

Integrated Cable Management

The built-in Cable Management System keeps power and signal cables neatly organized inside the support arms.

This creates a cleaner appearance while protecting cables from excessive bending during movement.

Strong Mounting Base

The reinforced wall plate distributes weight evenly across the mounting surface, increasing stability and safety for large televisions.

It supports installation on:

• Wood Stud Walls
• Concrete Walls

making it suitable for residential and commercial environments.
