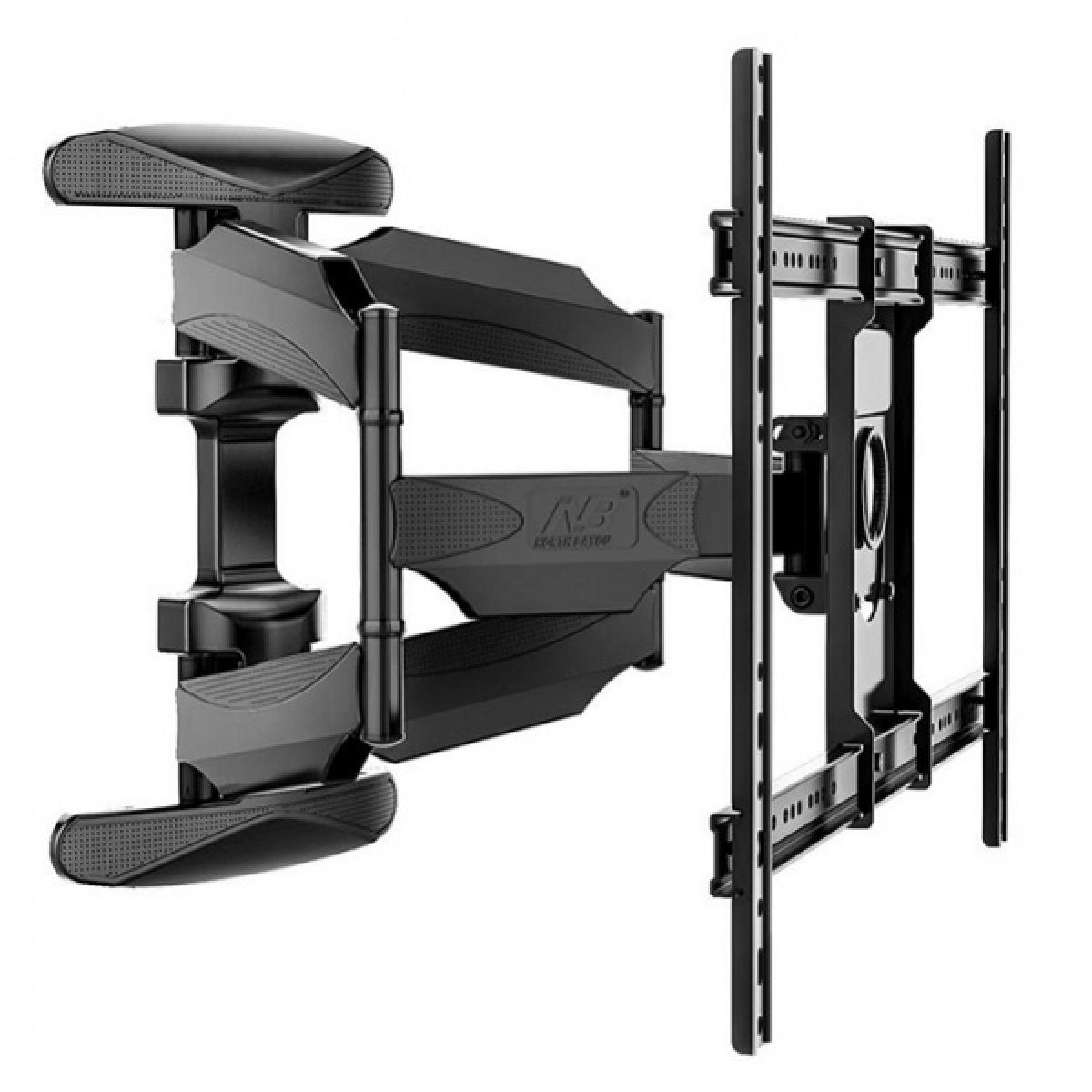

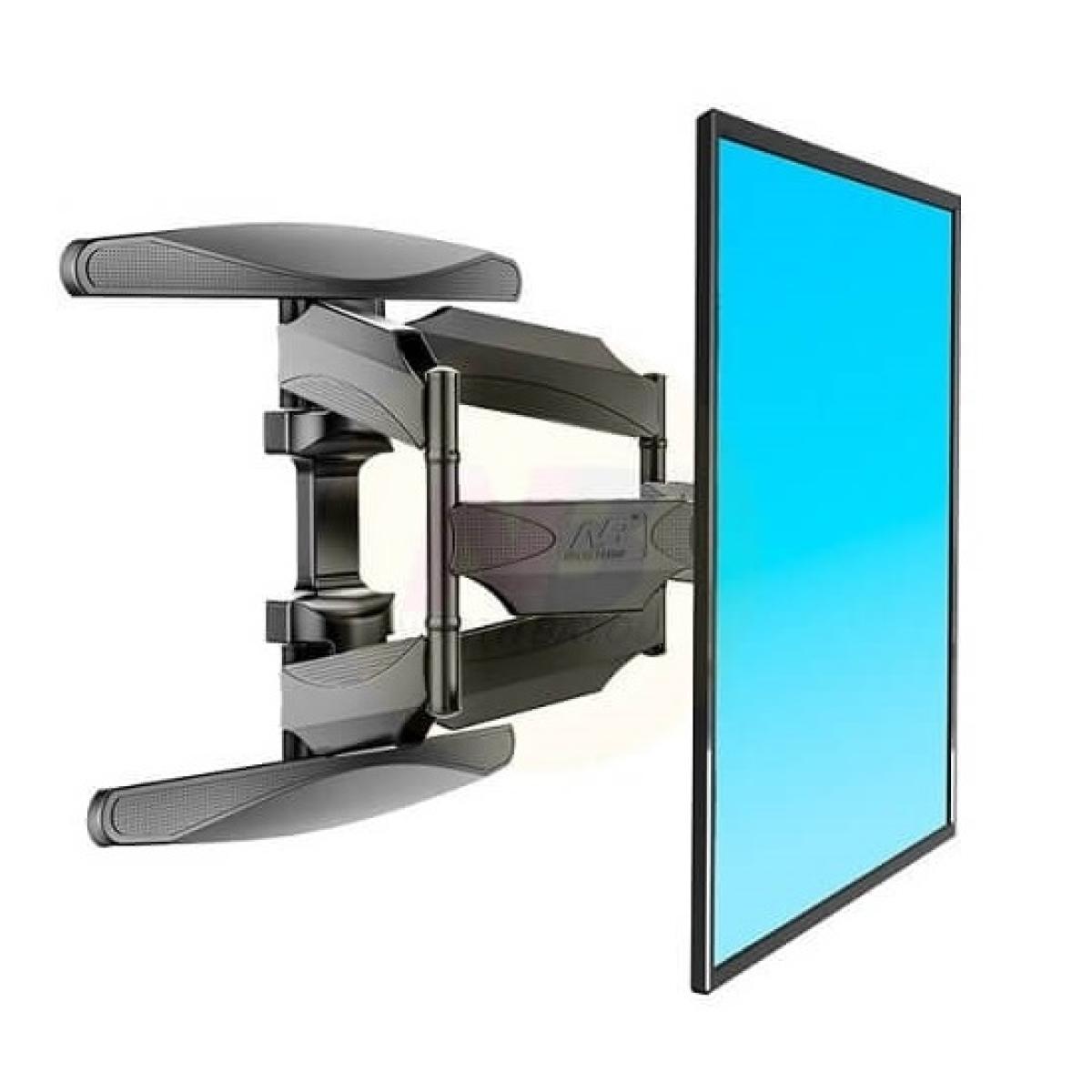

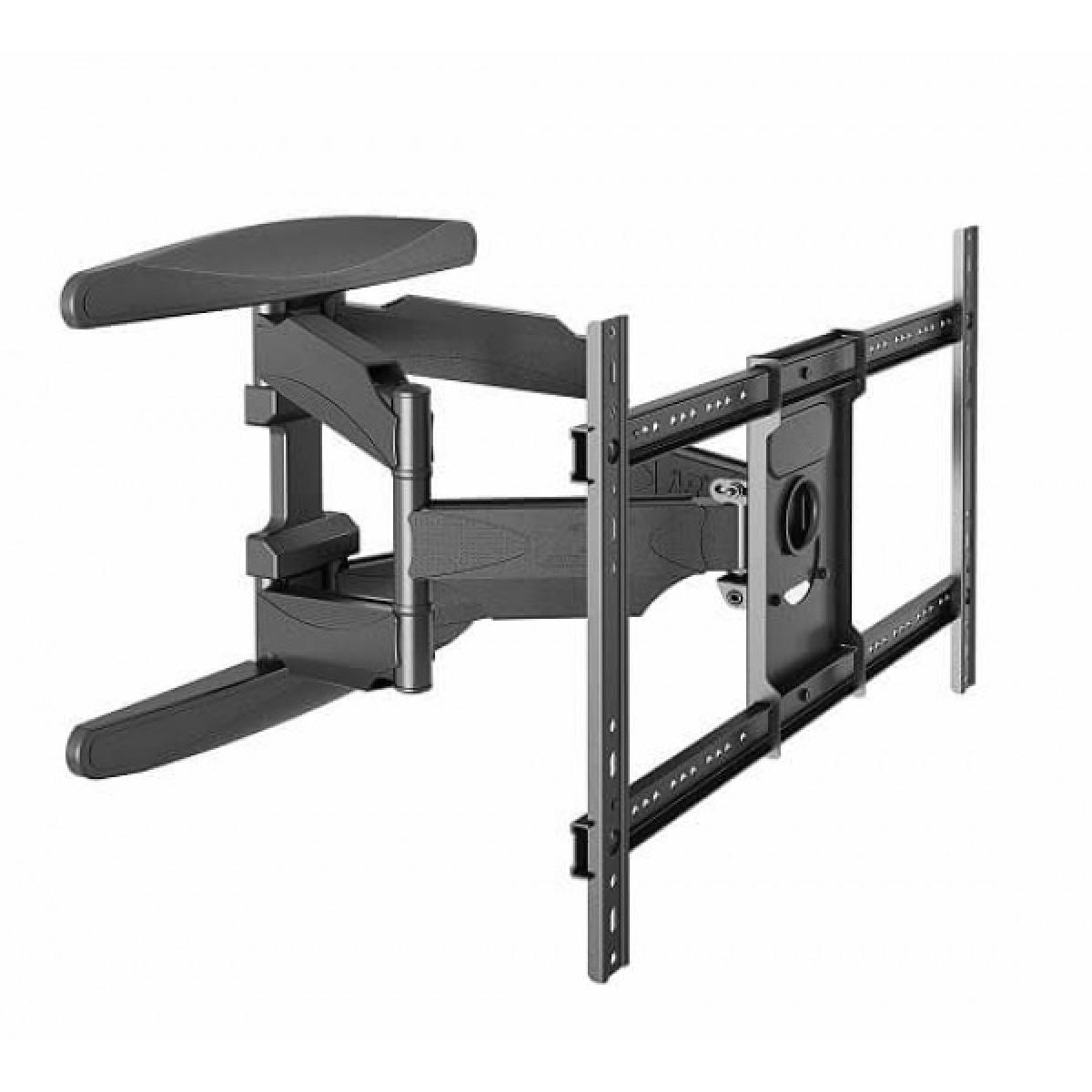

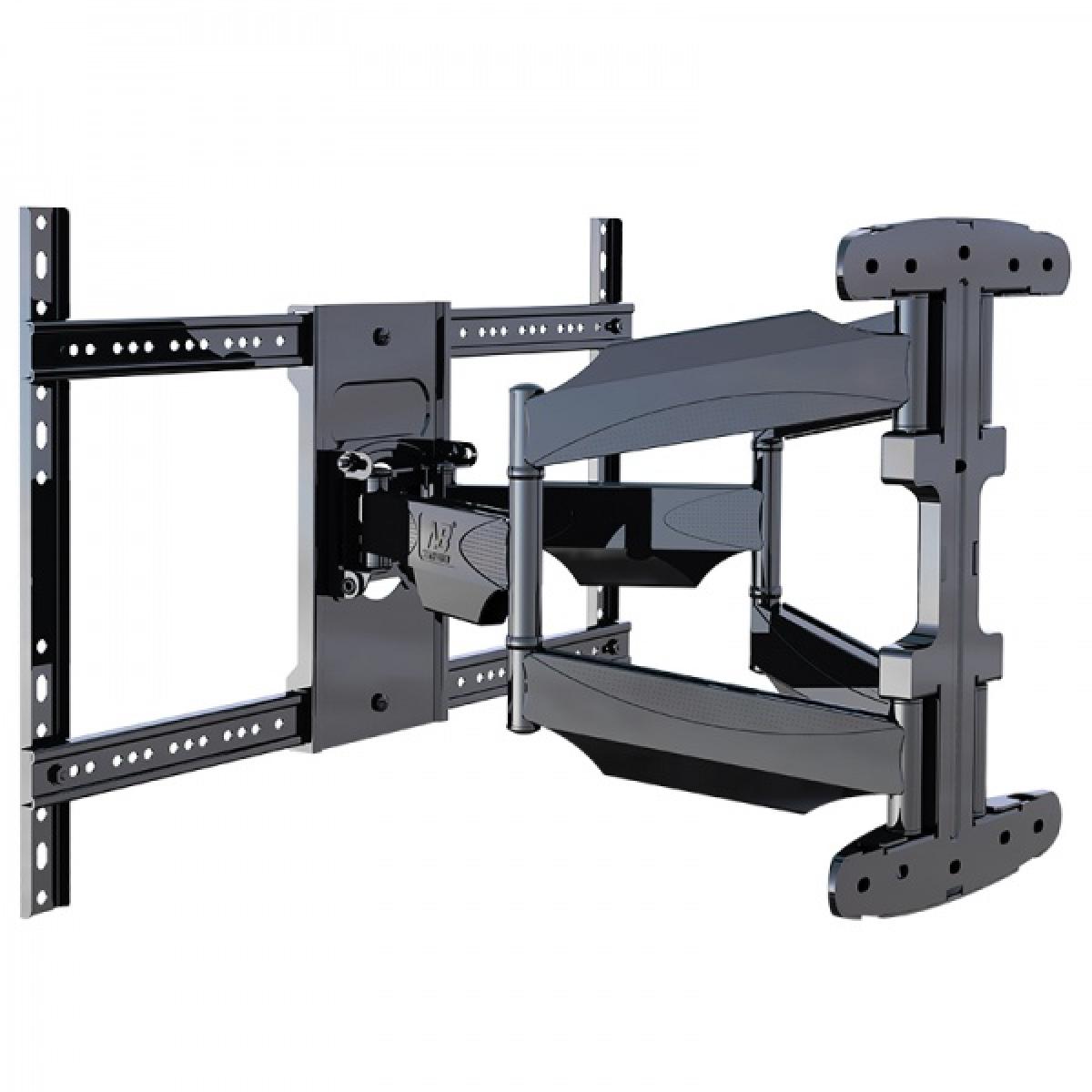

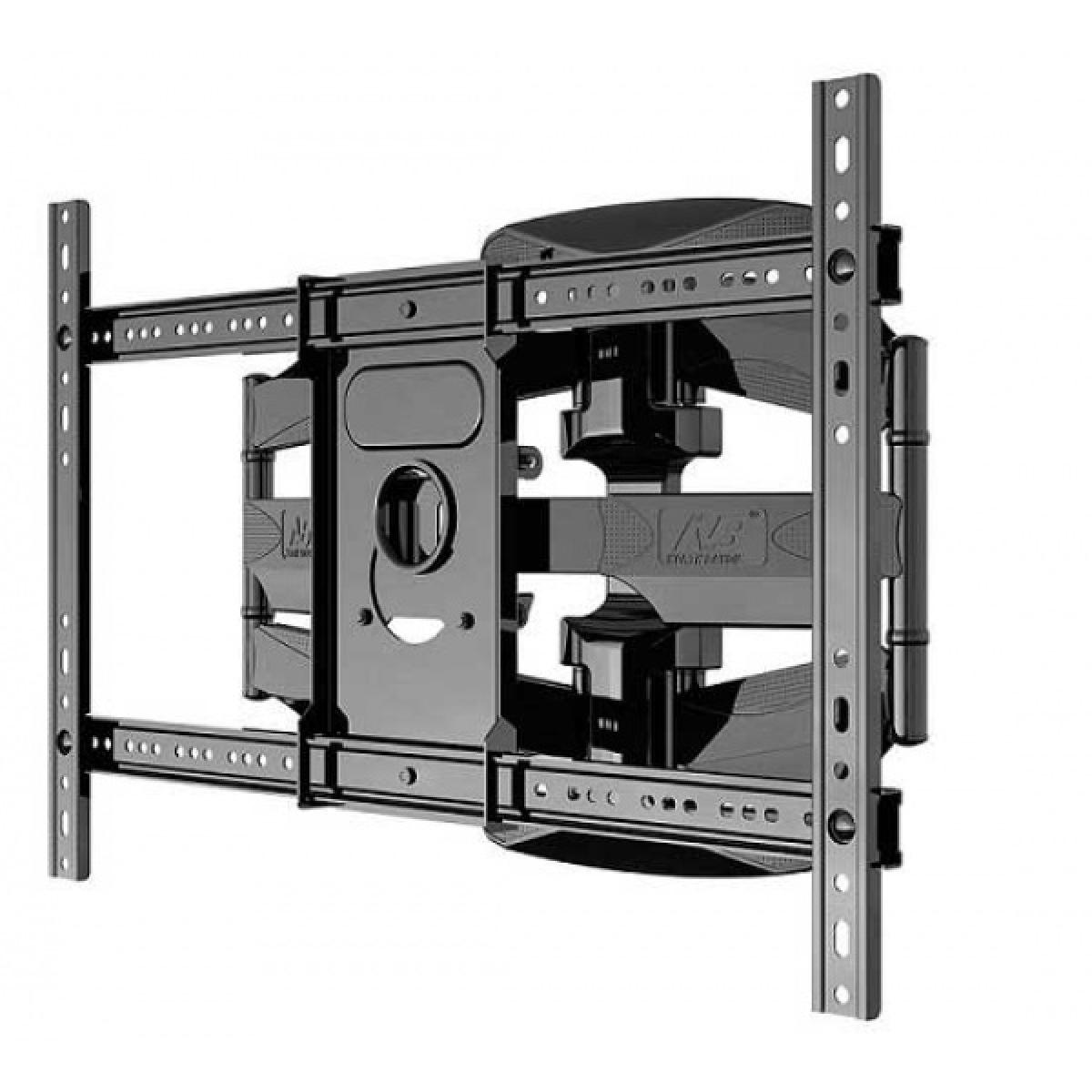

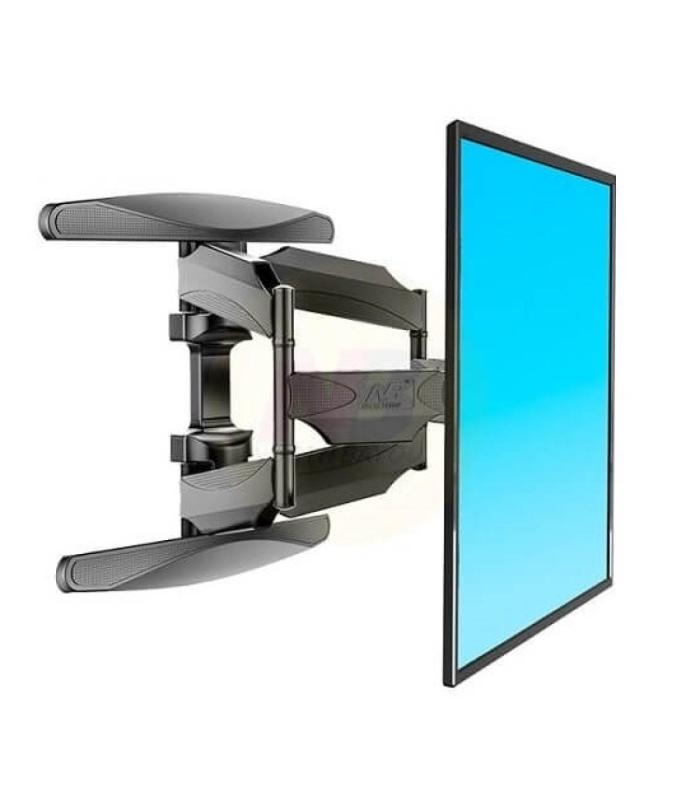

The North Bayou NB 767-L600 is a heavy-duty Full Motion TV Wall Mount designed for 45 to 70-inch televisions. Built from high-quality SPCC steel, it offers outstanding strength, flexible viewing angles, and reliable support for large LED, LCD, QLED, OLED, and Smart TVs weighing up to 45.5kg (100 lbs).

Its adjustable swivel arm, tilt mechanism, and extendable design allow users to achieve the perfect viewing position while saving space and maintaining a clean, modern installation.

Compatibility

Supports 45" to 70" TVs

The bracket is designed for televisions ranging from 45 inches to 70 inches, making it suitable for most modern Smart TVs used in homes, offices, meeting rooms, classrooms, hotels, restaurants, and commercial environments.

Smaller TVs may require a different VESA pattern, while TVs larger than 70 inches generally require heavy-duty wall mounts with higher load capacities.

Wide VESA Compatibility

Supports the following VESA mounting patterns:

• 200 × 200 mm
• 400 × 200 mm
• 400 × 400 mm
• 600 × 400 mm

This wide compatibility allows installation of televisions from many leading brands including Samsung, LG, Sony, TCL, Hisense, Xiaomi, Philips, Toshiba, and many others that support compatible VESA standards.

Heavy-Duty Construction

Supports up to 45.5kg (100 lbs)

With a maximum load capacity of 45.5kg, the mount securely supports most medium and large televisions.

It is suitable for both residential and commercial installations while providing excellent stability.

For very large professional displays or interactive panels above this weight, a commercial-grade wall mount is recommended.

High-Quality SPCC Steel Construction

Manufactured from SPCC cold-rolled steel, the bracket provides excellent durability, structural strength, and long-term reliability.

Steel construction offers significantly greater rigidity than lightweight aluminum or plastic mounts, making it ideal for larger televisions.

Viewing Flexibility

Full Motion Swivel

The adjustable arm provides approximately 50° to 70° swivel, allowing users to rotate the television toward different seating positions.

This is especially useful in living rooms, conference rooms, waiting areas, restaurants, and classrooms where viewers sit from multiple angles.

Tilt Adjustment (+8° / -5°)

The tilt function allows the television to be angled upward or downward to reduce reflections from lighting and windows while improving viewing comfort.

Compared to fixed wall mounts, tilt adjustment offers a much more comfortable viewing experience.

Adjustable Wall Distance

The bracket extends from 58mm up to 500mm from the wall.

When retracted, it provides a clean, space-saving installation. When extended, it offers greater flexibility for cable access, screen positioning, and viewing angle adjustments.

Fixed wall mounts usually remain less than 40mm from the wall but do not provide extension or movement.

Clean Installation

The integrated arm design helps organize cables behind the television while maintaining a neat and professional appearance.

The black finish blends easily with most televisions and modern interiors.
